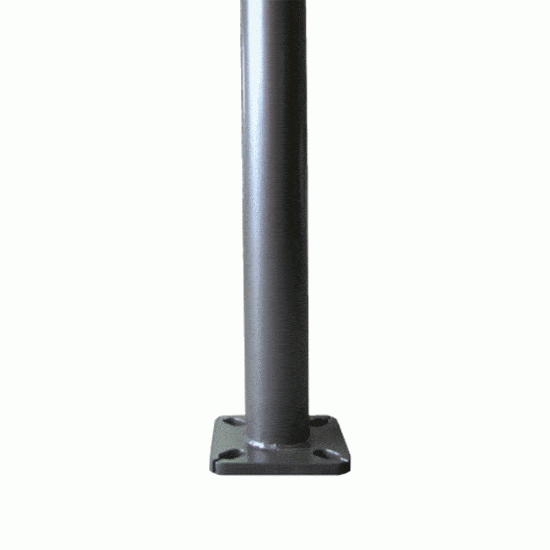

Round Straight Steel Galvanized Light Poles 20′ x 5" x 11G

$1,109.97

Description

The Round Straight Steel Galvanized Poles support up to four light fixtures and come in a variety of heights. Made from rolled carbon steel, these durable poles withstand harsh elements and strong winds. Multiple colors and galvanized anchor bolts available.

POLE ─ The pole shaft is fabricated from hot rolled carbon steel having a
minimum yield of 55,000 PSI and conforms to ASTM A500 grade C requirements. The shaft construction is a single piece of formed steel welded longitudinally. The hand hole is located 1’ above the pole base. A ground lug is provided standard.

ANCHOR BASE ─ The anchor base is fabricated from a structural quality
hot rolled carbon steel plate that has a minimum yield strength of 36,000 PSI. The anchor base telescopes the pole shaft and has a circumferential weld on the top and bottom.

BASE COVER ─ A full base cover is provided which encapsulates the base
plate and anchor bolts to provide a clean transition from pier to pole.

FINISH ─ A Super Durable Polyester powder coat finish is electrostatically
applied in our state of the art paint facility. Standard colors available: Black,
Bronze, US Green, White. Custom colors available upon request. Galvanizing and T-Guard treatments available upon request. Additional warranty extensions available with these treatments

*Please consult with LED Spot for lead time estimates.

Additional information

Weight 300 lbs
Dimensions 20 × 10 × 10 in
Paint Color

, , ,

Pole Shape

Pole Height

Pole Diameter

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

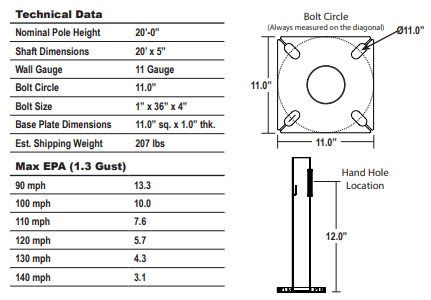

Cut Sheets
