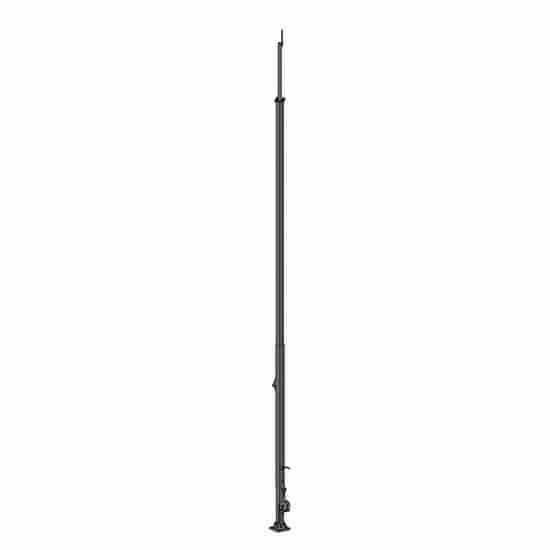

Galvanized Hinged Straight Square Steel Light Pole 30′ x 5" x 7/11

Galvanized Hinged Straight Square Steel Light Pole 30′ x 5" x 7/11

SKU: LS-HP30 5 7/11 GLVP Categories: , , Brand:

$4,281.20

Add to quote

Description

The HP Series 30-foot Steel Square Hinged Pole is designed to provide exceptional strength, durability, and maintenance accessibility for area lighting, parking lots, roadways, campuses, and commercial developments. Constructed from ASTM A500 Grade C hot-rolled carbon steel with a minimum yield strength of 55,000 PSI, this pole features a heavy-duty 7-gauge lower shaft and 11-gauge upper shaft for superior structural performance.

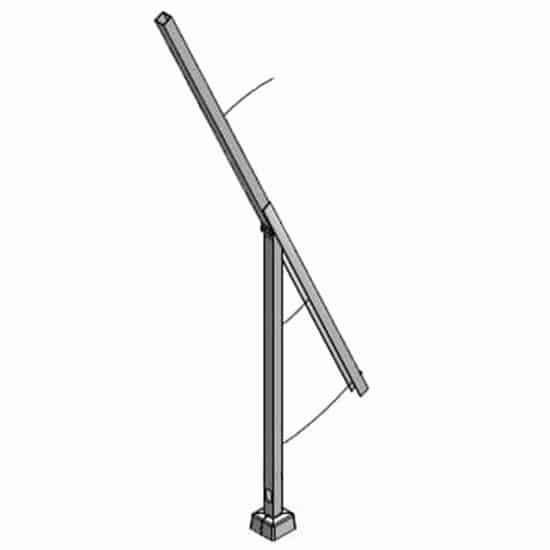

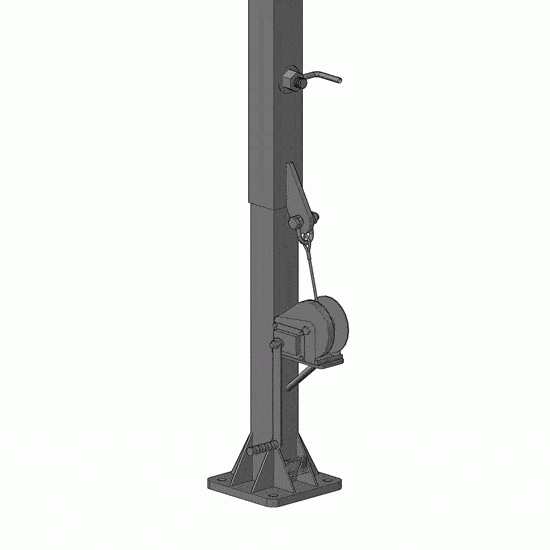

The pole incorporates a concealed internal hinge system that allows fixtures to be lowered safely for maintenance without requiring aerial lifts or bucket trucks. A reinforced hand hole, integrated grounding provisions, full base cover, and premium powder coat finish ensure long-term reliability and a clean architectural appearance.

The Galvanized Hinged Straight Pole includes anchor bolts and a base cover.

*Please consult with LED Spot for lead time estimates.

Additional information

Weight 500 lbs
Dimensions 30 × 10 × 10 in
Paint Color

, , ,

Mounting

T238 – 2 3/8" OD tenon (standard), T278 – 2 7/8" OD tenon, T312 – 3 1/2" OD tenon, PC Pole Cap Onty, DM1 Drill One Side, DM290 Drill 2 Sides at 90", DM2180 Drill 2 Sides at 180, DM390 Drill 3 Sides at 90°, DM3120 Drlll 3 Sides at 120°, DM490 Drill 4 Sides at 90"

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Cut Sheets
