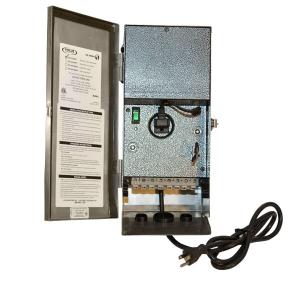

Above Grade Transformer RXT Series



The RXT Series Transformers is now the replacement for the MST Series Transformers and the WT Series Transformers.


• UL 1838 listed, the standard for low voltage landscape lighting systems

• 60, 120, 180, 300 and 600 watt output models available

• Multi Voltage output standard(12.5, 13.5 & 14.5 Volts)

• Super Terminal Lugs with capacity of 3 x #8, 5 x #10, 7 x #12 or 9 x #14 gauge wire

• 304 Stainless Steel enclosure with No. 4 brushed finish

• Removable hinged door is lockable and weather sealed

• Above grade, NEMA 3R rated, rain tight enclosure

• LED indicators for instant recognition of 120v and 12v power

• Timer Ready standard (for plug in timers)

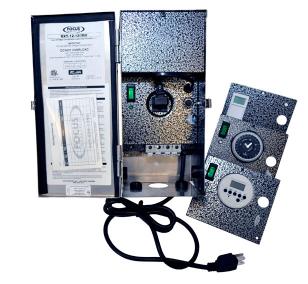

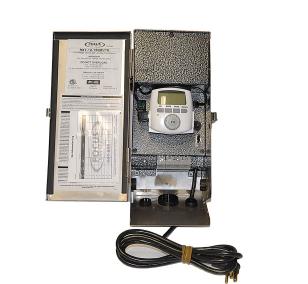

• Optional Mechanical Timer (-T), Digital Timer (-DT) and Astro Timer (-AT) face plates can be factory or field installed

• Photocell Ready with quick connector (not on -AT models)

• Supplied with two 1/2″ conduit (trade size) holes & one 1-1/2″ inlet with plugs in bottom panel plus 2 side panel 1/2″ conduit (trade size) holes with plugs

• Break away bottom panel swings down for easy access wiring

• 11 gauge cold rolled steel ‘L’ brackets for stable mounting

• Mounting plate and hardware included

• Brushed Stainless Steel

• Long life, high efficiency 266°F (130°C) class ‘B’ rated transformer core

• Copper Shielded isolation/insulation; No contact between 120v and 12v windings

• 1500v Isolation between all windings and ground

• Grade M19 electric grade steel for superior electrical and magnetic properties

• Single phase, open core and coil

• E.L. laminated core has concentric winding and is protected by 180°C thermal switch.

• Double vacuumed impregnated with black slate flour

• Filled varnish for superior heat dissipation and noise reduction – Class 180°C

• 120v primary, 12.5v secondary 50/60 Hertz/cycle (standard)

• 6 foot 18/3 SJT-WA weatherproof grounded power cord (120v)

• ON/OFF control via rocker switch on 120v side

• Extra heavy duty (80 amp) terminal lugs

• Manually resettable circuit breakers on front panel for overload and short circuit protection

• 12″ are found in 60w,120w,180w

• 15″ are found in 300w and 600w

Additional information

Weight 45 lbs
Dimensions 12 × 5.5 × 5 in

60, 120, 180, 300, 600


Astro-Timer, Digital Timer, Timer, Photocell, Timer ready, Digital timer, photocell, no core, timer ready, photocell, timer ready, remote photo cell, Timer photocell, Digital timer, remote photocell, Timer, remote photocell, remote photocell


12", 15"
