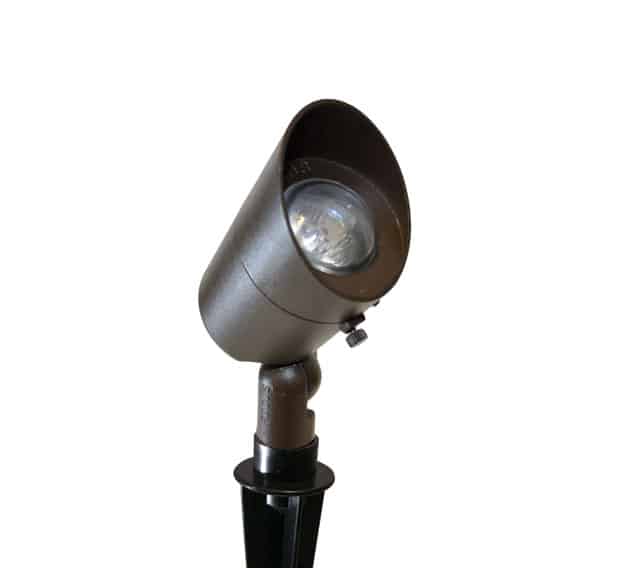

DL21 Bullet Light with a Convex Lens

Description

This versatile LED landscape lighting fixture features a durable construction with a choice of extruded aluminum, brass, or composite housing, swivel, and cap materials. The cast aluminum, cast brass, or composite swivel provides 240° of adjustability for precise light positioning. Designed for 12V applications, the fixture includes a standard FA03 black ABS 9-inch stake with an aluminum version, with an optional FA03LG large black ABS 9-inch stake available.

The fixture is finished in a black textured polyester powder coat, with additional finish options available. Rated IP66, it is suitable for both indoor and outdoor installations, including wet locations.

Available in 12V–120V configurations, the fixture accommodates Super Saver LED MR16 lamps in 3W, 5W, and 7W options, producing 270, 450, and 550 lumens, respectively. Beam angles of 15°, 36°, and 80° are available depending on the lamp selected.

Additional features include high-impact clear tempered convex glass, a 70-durometer, 400° purple silicone O-ring, and a 3-foot black 18/2 zip-cord lead from the fixture base for 12V models. An optional 25-foot 16/2 fixture lead wire is available for 12V applications by adding the suffix (-25F) to the catalog number.
