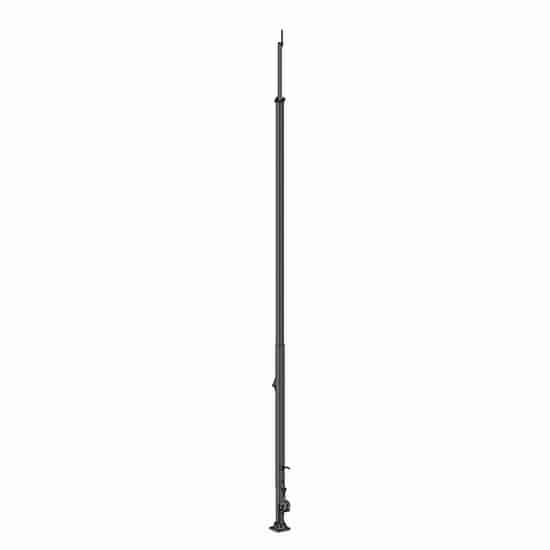

The Galvanized Hinged Straight Pole bends to provide versatility in lighting applications. The heavy duty material supports up to four lighting fixtures and stands up to high winds and precipitation. The Galvanized Hinged Straight Pole includes galvanized anchor bolts, and base cover.
POLE ─ The pole shaft is fabricated from a weldable grade of hot rolled
carbon steel having a minimum yield of 55,000 PSI and conforms to ASTM
A500 grade C requirements. The shaft construction is a single piece of
formed steel welded longitudinally with high frequency electric resistance
welding. The shaft is uniformly square with radius corners. The hand hole is
located 1’ above the pole base. The hand hole reinforcement ring is 3” x 5”
rectangle tubing. A galvanized flange is welded directly back from the hand
hole inside the shaft which is provided with a stainless pan head machine
screw and attaching bar. A galvanized flange is welded directly back from
the hand hole inside the shaft which is provided with a bolt to allow for easy
installation of the ground wire.
ANCHOR BASE ─ The anchor base is fabricated from a structural quality
hot rolled carbon steel plate that has a minimum yield strength of 36,000 PSI. The anchor base telescopes the pole shaft and has a circumferential weld on the top and bottom.
BASE COVER ─ A full base cover is provided which encapsulates the base
plate and anchor bolts to provide a clean transition from pier to pole.
HINGE ─ The pole is provided with an internal hinge which includes a zinc
plated Grade 8 carbon steel hinge pin. The hinge is constructed to be internal for a clean and uninterrupted pole profile. An internal flexible wire way is provided to insure the wires are protected when the hinge is in use.
FINISH ─ A Super Durable Polyester powder coat finish is electrostatically
applied in our state of the art paint facility. Standard colors available:
Black, Bronze, US Green, White. Custom colors available upon request.
Galvanizing and T-Guard treatments available upon request. Additional
warranty extensions available with these treatments.
POLE DESIGN ─ The poles shown in this specification section are designed to withstand dead loads and theoretical wind loads created by variable wind speeds with a 1.3 gust factor under the following conditions.
The fixture and/or arms are to be mounted at the center of gravity of the
pole and are to be located no greater than 2’ 6” above the pole height. The
EPA (Effective Projected Area) is to be the actual projected areas and drag
To operate properly the poles should have a minimum fixture weight of 50 lbs.
*Please consult with LED Spot for lead time estimates.
