Focus 7.5″ China Hat

Description

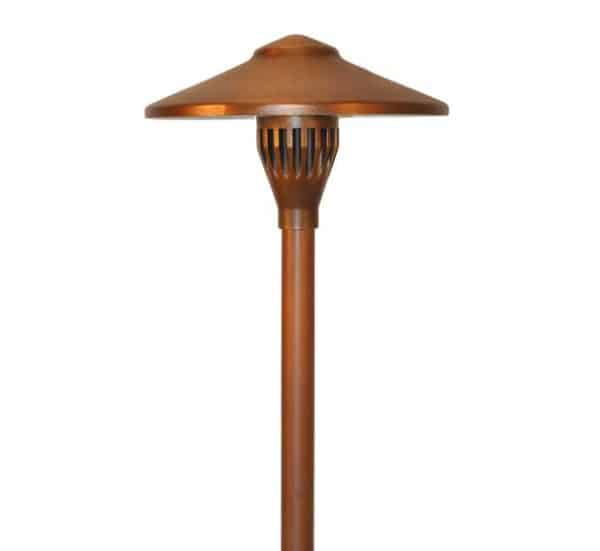

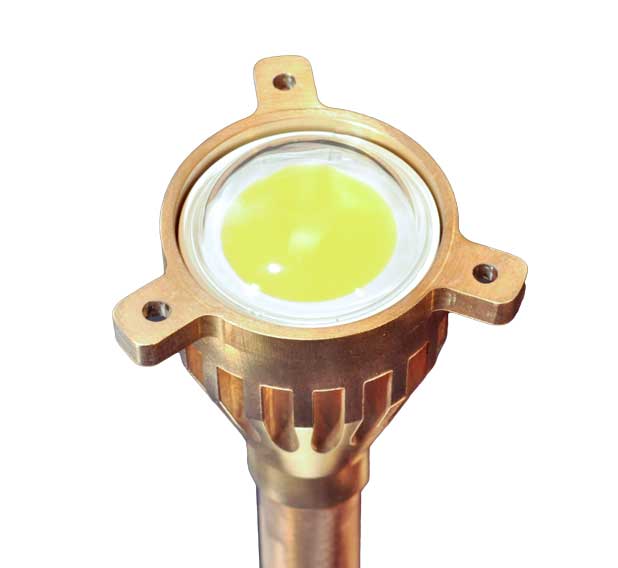

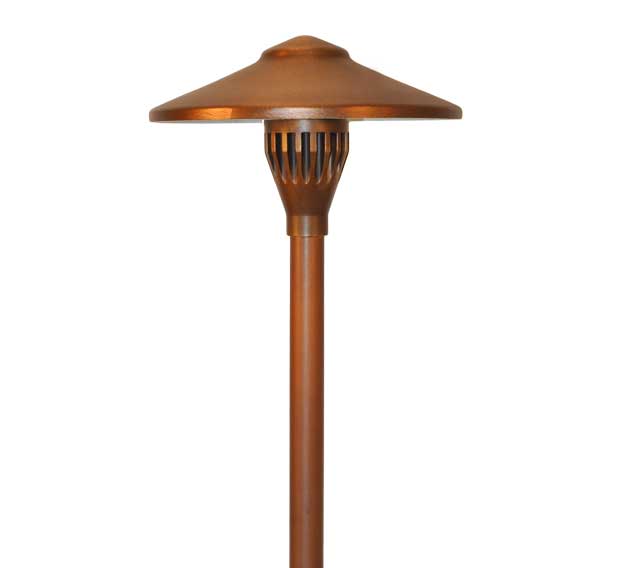

CONSTRUCTION:  Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub

LENS: High-impact clear acrylic

LIGHT SOURCE:  4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available (modify part number to “LEDP52”)

LIFETIME RATING:  50,000 hours

12V INTERNAL DRIVER:  5w 12vDC 350mA output, 12vAC input

SOCKET:  None – LED is hard-wired inside fixture

MOUNTING:  Aluminum Models: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
Brass Models: FA-03-LG ABS black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.

NOTE:  120v – 277v options available with remote LED driver.  Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.
