Pole Selection GuideTo determine the proper pole for your application follow these steps.
- Select Luminaire
- Select Bracket
- Refer to Fixture EPA Chart below to determine Fixture EPA value
- Select pole height

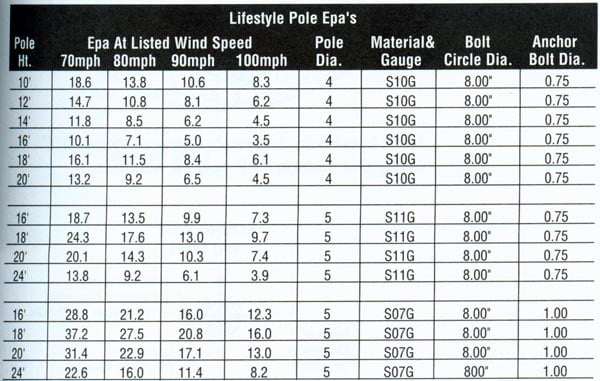

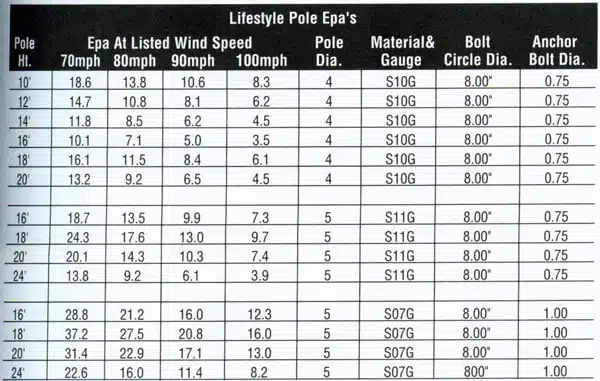

- Refer to Pole EPA Chart and select MPH to match the wind speed in application area
- Confirm the Pole EPA is equal to or more than the Fixture EPA
| Fixture EPA Chart (includes Luminaire and Bracket) | Post Top | Single arm | Double 90 | Double 180 | Triple 90 | Triple 120 | Quad 90 |
| LS – Lifestyle Small | 1.1 | 1.6 | 2.3 | 2.7 | 3.3 | 3.4 | 4.1 |
| LM – Lifestyle Medium | 1.3 | 1.8 | 2.7 | 3.1 | 4.0 | 4.0 | 4.9 |
