Installing Westinghouse Ceiling Fans

Instaloc Ceiling Fan

The InstaLoc™ ceiling fan has only a few parts and installs in 15 minutes.

VS.

Traditional Ceiling Fans

A traditional ceiling fan has approximately 60 parts and can take up to two hours to install.

From simple builder styles to our fashionable home décor models, Westinghouse offers a wide selection of ceiling fans that feature our patented InstaLoc™ technology. This revolutionary installation system makes ceiling fan installation quick, safe and easy! We believe you should spend less time installing and more time enjoying the beauty and the breeze of our ceiling fans.

  • Installs in 15 Minutes*
  • Pre-assembled at Factory
  • 75% Fewer Parts

*Under normal installation circumstances.

Support Boxes and braces for ceiling fans

Ensure safe installation by using one of our sturdy fan support braces or boxes to hang your fan. All ceiling fans must be installed with a UL Listed ceiling fan box or brace. Be sure you have the correct box or brace to meet your needs.

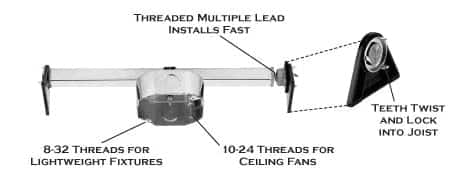

  UL Listed SAF-T-BRACE ®



  • For Remodel or New Construction Applications
  • Fits 16″ to 24″ Ceiling Joists
  • Installs Without Going into the Attic
  • Includes a Heavy Duty, 15.5 Cubic Inch Dual Mount Box and Mounting Hardware

Maximum Load Rating for Ceiling fans: up to 70 lbs. / Light Fixtures: up to 150 lbs.

01100 – Support Brace with Locking Teeth
US Patent No. 5,720,461 and 4,909,405

Westinghouse Ceiling Fan Installation

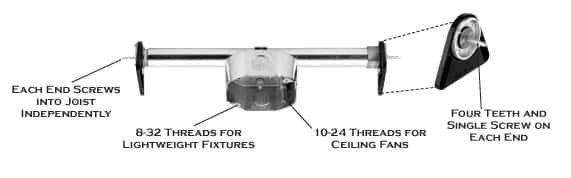

01010 – Support Brace with Locking Screws and Teeth
US Patent No. 4,909,405 and 306,25



Instaloc Instructions

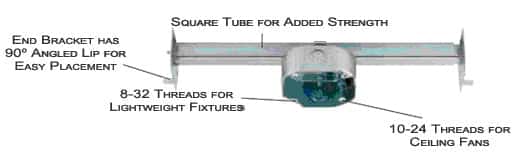

UL Listed  SAF-T-BRACE®

  • For New Construction or for Applications Where Attic is Accessible
  • Fits 16″ to 24″ Ceiling Joists
  • Fits Engineered Truss
  • Includes a Heavy Duty, 15.5 Cubic Inch Dual Mount Box and Mounting Hardware

Maximum Load Rating for Ceiling Fans: up to 70 lbs. / Light Fixtures: up to 150 lbs.

01525 – Support Brace for New Construction (Boxed)
01525-11 – Support Brace for New Construction (Bulk Packed)
US Patent No. 5,860,548

Instaloc

UL Listed SAF-T-BOX®

  • For New Construction or for Applications Where Attic is Accessible
  • Features Dual Mounting Capabilities
  • 3 Knockouts for Conduit or Romex®
  • 2 Romex® clamps

Maximum Load Rating for Ceiling Fans: up to 70 lbs. / Light Fixtures: up to 150 lbs.

01050 – Dual Mount Fan and Fixture Support Box (Boxed)
01050-11 – Dual Mount Fan and Fixture Support Box (Bulk Packed)
US Patent No. 5,860,548

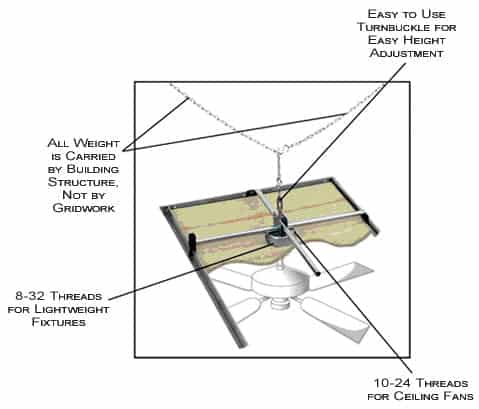

UL Listed SAF-T-Grid®

  • Complete Kit for Suspended Ceilings
  • Fits 2′ x 2′ and 2′ x 4′ Ceiling Tile Gridwork
  • Includes a Heavy Duty, 15.5 Cubic Inch Dual Electrical Box
  • Easily Adjustable
  • Includes 15′ of Support Chain, All Mounting Hardware and Instructions

Maximum Load Rating for Ceiling Fans or Light Fixtures: 50 lbs.

01070 – Support Brace for Suspended Ceilings
US Patent No. 5,433,514 amd 4,909,405



Fan Master® Jr.

  • For New Construction Applications
  • All Wiring is Accommodated on One Side; no Need to Split Wires
  • 2 Knockouts for Conduit or Romex®
  • 1 Romex® Clamp
  • Ceiling Fan is Supported by Joist, not Box
  • Includes Mounting Hardware and Instructions

Maximum Load Rating for Ceiling Fans: up to 70 lbs. / Light Fixtures: up to 150 lbs.

02000-11 – Fan Master Support Box (Bulk Packed)
02525-11 – Fan Master Jr. Support Box (Bulk Packed)
US Patent No. 5,762,223













All fan brace products include SAF-T-CAP® and mounting hardware.

Please check out our selection of Westinghouse Ceiling Fans or call us with any other questions.
