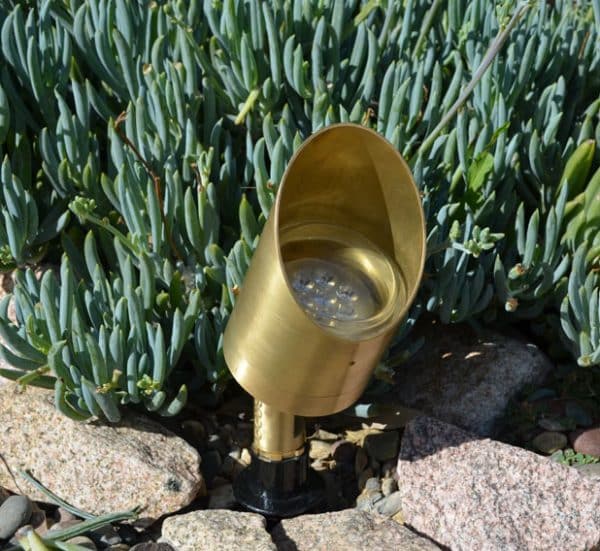

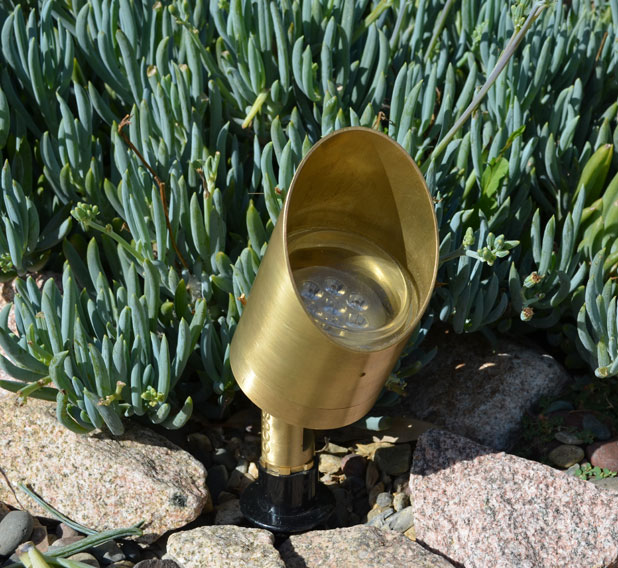

Focus DL-42 LED Bullet Light

SKU: LS-DL-42-LEDM Categories: ,



CONSTRUCTION:  Cast aluminum or cast brass integrated heat sink base; matching cast adjustable swivel with 240° rotation; extruded aluminum, brass or copper housing (copper housing has brass base)

LENS:  High impact clear tempered convex glass

O-RING:  2x high temperature red silicone

LIGHT SOURCE:  50,000 hour Integrated 2700K 450 lumen 7w LED module (equivalent to 35w halogen) with 6 high power Cree XPE LEDs

OPTICS:  Interchangeable 15° spot, 40° flood, 60° wide flood and 160˚ widest flood (no optics)

12v Driver:  Integrated on-board, no external driver required.
12v AC/DC input
120v/277v* Driver: See specification sheet
*Must use FA-26 mounting post or junction box

Aluminum model:  FA-03 black 9″ ABS stake, tapped 1/2″ NPS
Brass & Copper models:  FA-03-LG large black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Aluminum – Black texture polyester powder coat. Optional finishes available.
Brass – Unfinished. Optional finishes available.

Additional information

Weight 5 lbs
Dimensions 4 × 4 × 12 in
Paint Color

, , , , , , , , , , , , , , , , ,


7, 11, 15
